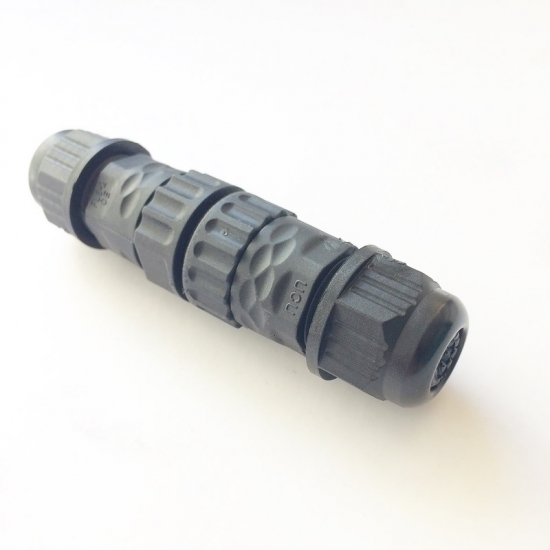

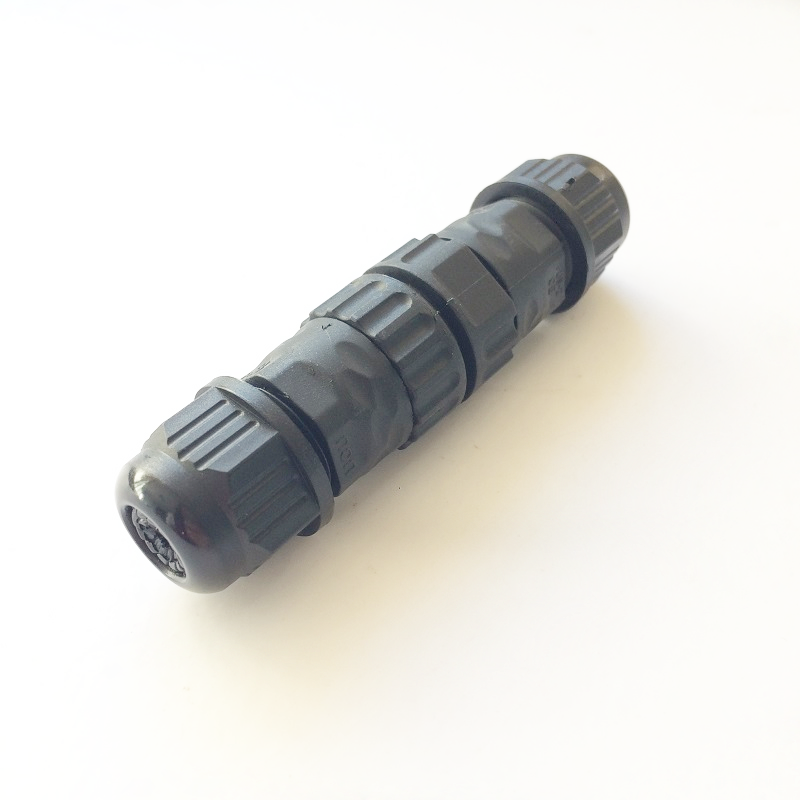

M16 IP68 Screw Connector for Cable

1.Technical Parameter

Numbers of Cores	2	3	4	5	6	7	8
Rated Current (A)	15A	10A	5A	5A	5A	5A	5A
Rated Voltage(V)	250V	250V	110V	110V	110V	110V	110V
The Withstand Voltage(AC.V) 1min	1500V	1500V	1500V	1000V	1000V	800V	800V
Contact resistance m Ω	2	2	2	5	5	5	5
Insulation resistance (m Ω)	2000	2000	2000	2000	2000	2000	2000
Wire Gauge	<=1.5 mm2	<=1.5 mm2	<=1.5 mm2	<=1.0 mm2	<=0.5 mm2	<=0.5 mm2	<=0.3 mm2
Cable OD	5.0-8.5 mm
Mechanical Life	3000 mating cycles
Waterproof Level	IP67   IP68

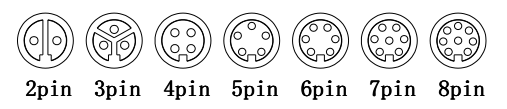

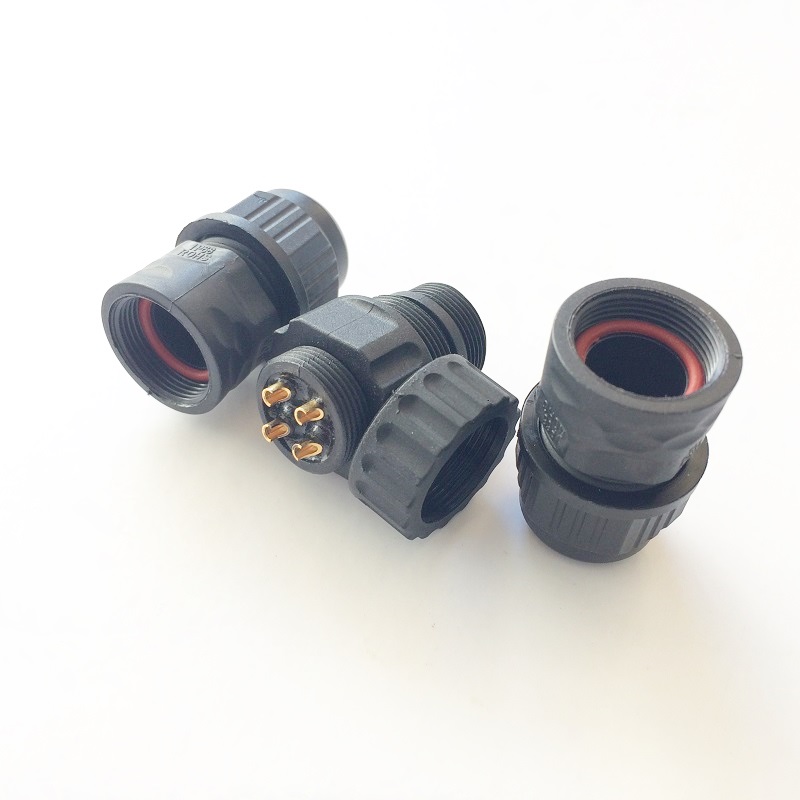

Pin Layout

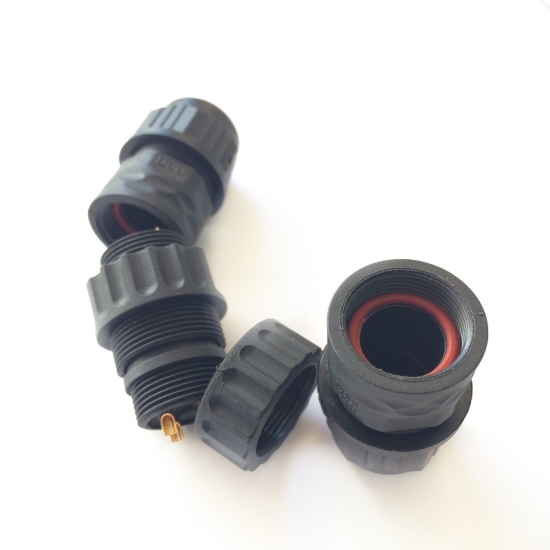

2. Using Conditions

• Connector Type:  screw/welding type
• Plug rubber:  PVC/nylon PA6, 125°C

• Joint inner shell rubber:  core nylon PA66, 125°C

• Conductor Contacts: Copper, Gold Plated
• Connection Type: Male to female threaded connection, welding type
• Wire material:  PVC wire, rubber wire, silicone wire

• Product color: Black or white

• Operating Temperature -25°C～105°C
• Storage temperature -25°C～85°C
• Atmospheric Pressure (86-106) KPa
• Relative temperature ≤90%
• Connector Housing Rubber Nylon PA66, 125°C

Manufacturer of a broad range of Waterproof IP68 Connectors. View full listing of IP68 M16 Connectors for Cables products here.
