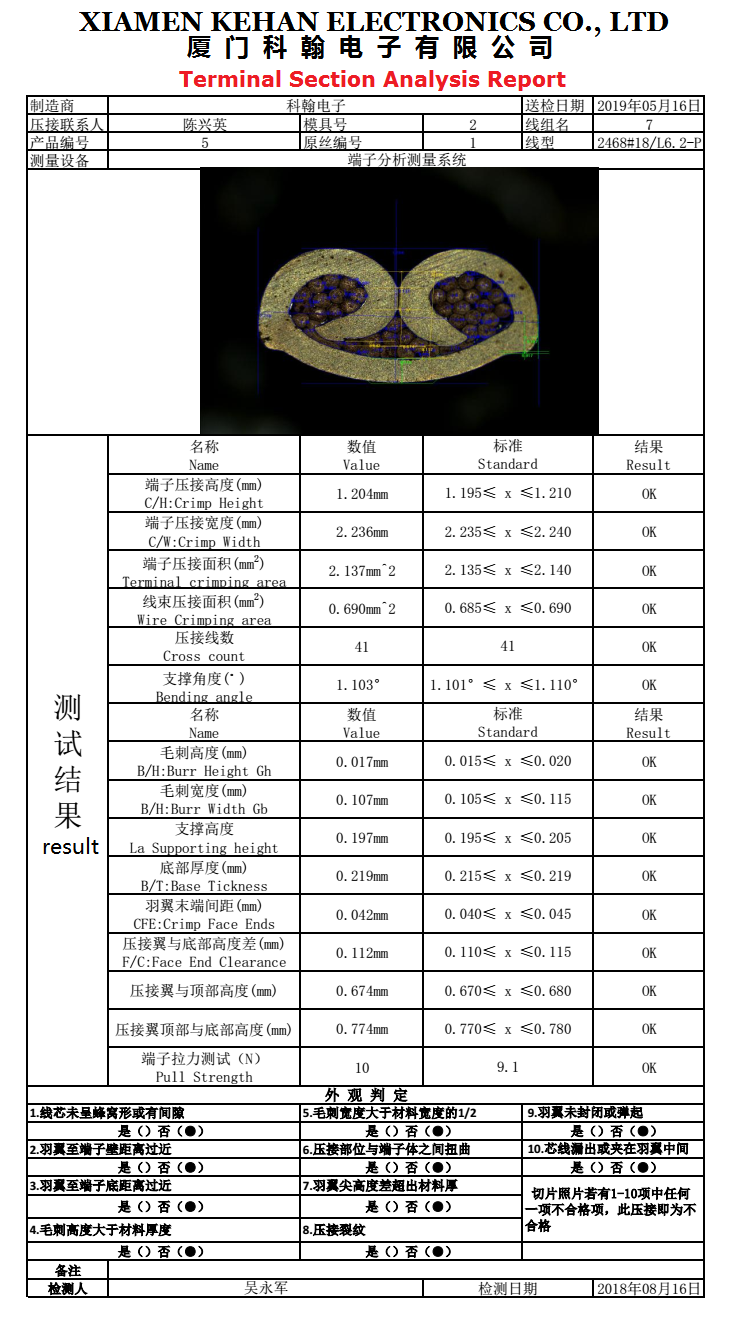

The Terminal Cross Section Analysis Report related to the wiring harness model No.5422 for the customer Riya Roy from Poland.

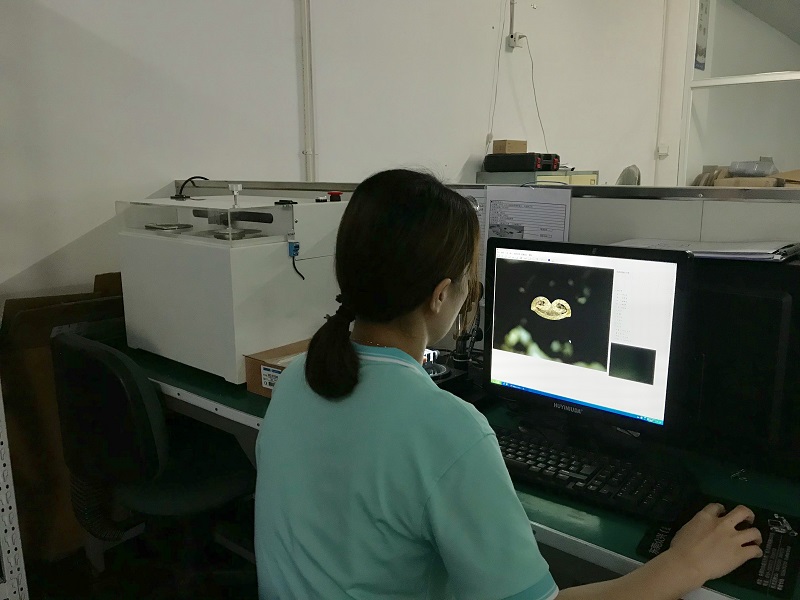

1. Microscope: 0.75 X~4.5 X (continuous zoom lens)
2. Total video magnification: 16~260 X
3. Zoom ratio: 6.5:1
4. Working distance: 100 mm
5. Moving action distance: 250 mm
6. Imaging System: HD CCD Imaging System
7. Measurement accuracy: 0.003 mm
8. Illumination source: halogen achromatic light source (effectively reduce the reflection)
