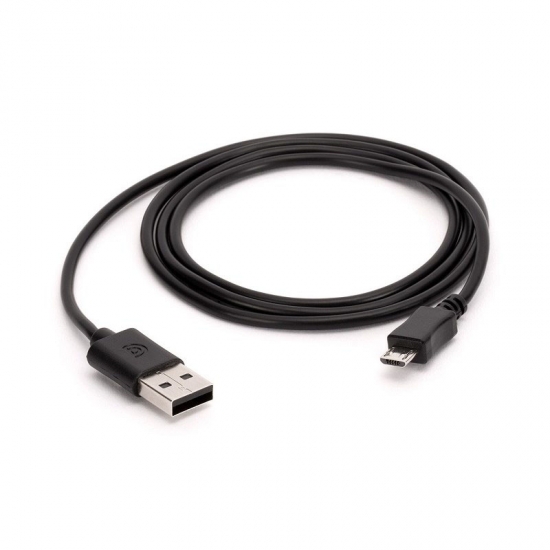

USB A Male to Micro-B USB Cable

1 Basic information about the product:

1.1, Product Name:

      USB A Male Left Bend to Micro USB B Male Straight Cable

      USB A Male Left Bend to Micro USB B Male Left Bend Cable

      USB A Male Left Bend to Micro USB B Male Right Bend Cable

      USB A male left bend to Micro USB B male up bend cable

      USB A Male Left to Micro USB B Male Down Cable


1.2 Length: 20cm to 10 metres can be customised (such as 20cm, 25cm, 38cm, 4.75m, etc.)

1.3, wire specifications: we use the core wire material is pure copper

There are several commonly used:

1. 2Cx22AWG+PVC+Black, this kind of wire is mainly used for 2A-3A current, for charging equipment.

2. 2Cx24AWG+PVC+Black, this kind is mainly used for charging devices with 1A-2A current.

3. 4Cx28AWG+PVC+Black, this kind is mainly used for charging devices with 300mA-500mA current plus data transmission.

4. 2Cx26AWG+1Px28AWG+Aluminium Foil+Braided+PVC+Black, this kind is mainly used for 300mA-500mA current equipment charging and data transmission, and anti-jamming, generally used for long wires and equipment with high requirements for signal transmission.

5. We can customise the corresponding wires according to the your requirements.



2, test:

1.100% short circuit, disconnection, misalignment test;

2. Insulation impedance test, DC5V, 5MΩ;

3. Conductance impedance test: 3Ω; DC high voltage: 300V.

4.AC withstand voltage: 100V.



3.Product Certification:

1. UL, RoHS and CE certification.



4.Packaging:

Customised packaging: We can customise different forms of packaging according to your requirements, we have done before: carton + blister; cardboard + blister; aircraft boxes and so on.

• APPLICATIONS

KEHAN focus on the quality customized USB cable assemblies for industrial equipment, control and signal appliances, computer data transmission, charging and so on.
