Application

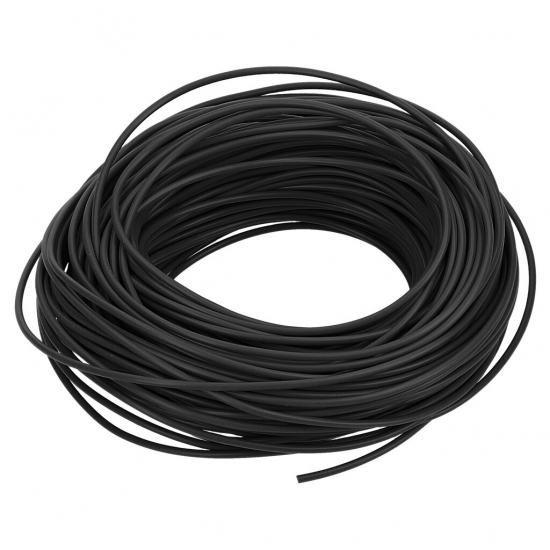

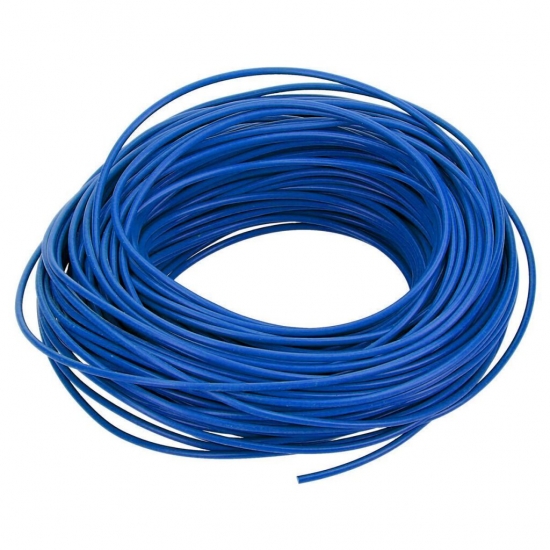

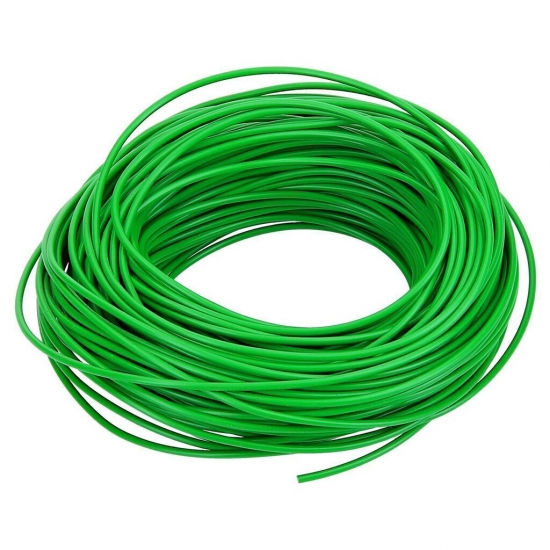

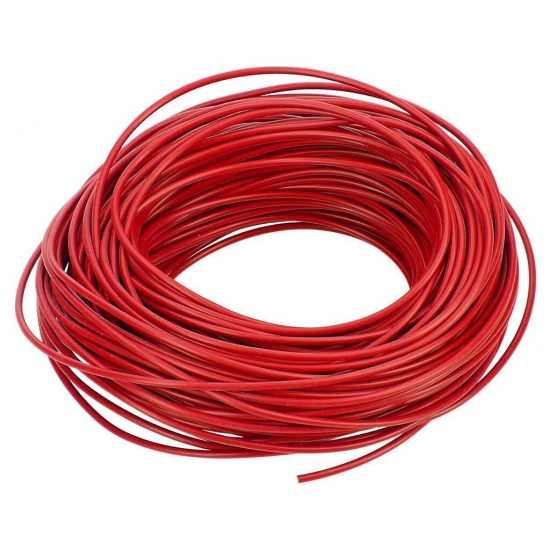

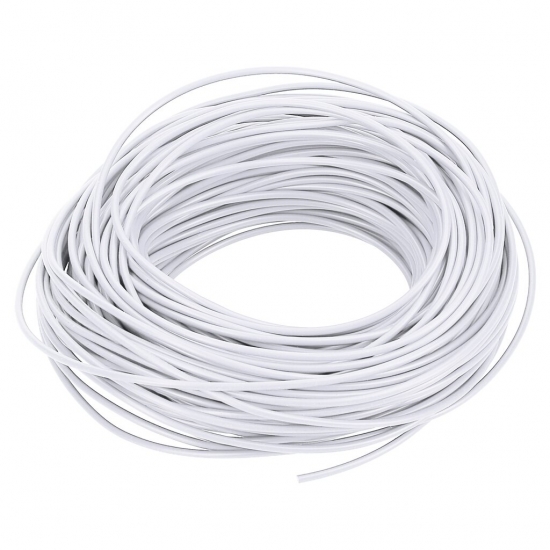

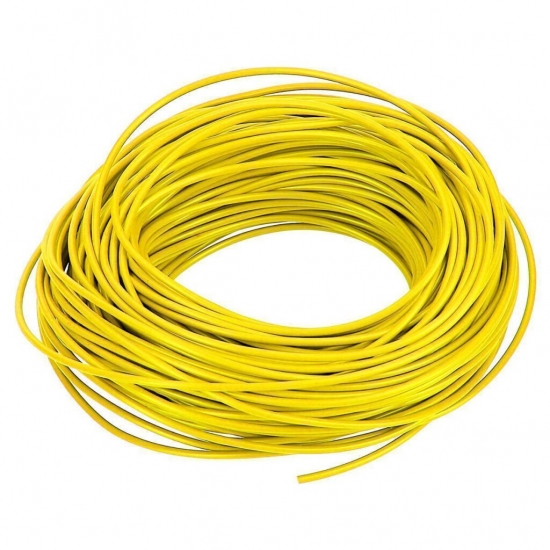

Low-tension electric wire for Automobiles.
Used in Motorcycles and other motor vehicles for starting, charging, lighting, signal and instrument panel circuits.
Its reduced insulation thickness and higher temperature withstanding properties serves its application in complex wiring harnesses.
Voltage Rating
60 V D.C.; 25 V A.C. (Suitable for 12 Volts and 24 Volts systems)
Temperature Range (3000 Hrs)
-40°C to +105°C
Cable Construction
Conductor : Soft-annealed electrolytic Copper E-Cu ETP1 according to DIN 13602, bare or tinned.
Conductor construction according to DIN 72551, Part 6, type B and ISO 6722.
Insulation : Plasticized PVC with properties according to DIN 72551 and ISO 6722, Class B, Lead free.
Outer Sheath : Plasticized PVC with properties according to ISO 6722, Class B
Colour : As per customer order
Properties
The lead free, PVC polymer, offers excellent resistance to petrol, chemicals, and abrasion, and in addition is suitable for both low and high temperature applications. Flame retardant to EN 60332-1-2
Packing
Available in 100 mtrs. Longer length available in spools or wooden drums.
Cabel Design Parameters
|
Nom. Cross-Section
(mm²)
|
Conductor construction
|
Insulation
|
Conductor DC Resistance: Max(at 20°C (Ω/km)) |
Scrape Abrasion(Number)
|
|||
| Cond.size(mm) | Strand direction | Nominal Thichness | Min.Thichness | Outer Diameter | |||
| 0.35 |
12/0.21 Max |
S | 0.25MM | 0.20MM | 1.30±0.05MM | 54.4 | ≥150 |
| 0.50 |
16/0.21 Max |
S | 0.28MM | 0.22MM |
1.53±0.07MM |
37.1 |
≥300 |
| 0.75 |
24/0.21 Max |
S | 0.30MM | 0.24MM |
1.80±0.10MM |
24.7 |
≥350 |
| 1 |
32/0.21 Max |
S | 0.30MM | 0.24MM |
2.00±0.10MM |
18.5 |
≥400 |
| 1.25 |
16/0.33 Max |
S | 0.30MM | 0.24MM |
2.20±0.10MM |
14.9 |
≥400 |
| 1.5 |
30/0.26 Max |
S | 0.30MM | 0.24MM |
2.30±0.10MM |
12.7 |
≥450 |
| 2 |
28/0.31 Max |
S | 0.35MM | 0.28MM |
2.65±0.10MM |
9.42 |
≥500 |
| 2.5 |
50/0.26 Max |
S | 0.35MM | 0.28MM |
2.85±0.10MM |
7.60 |
≥550 |
| 3 |
44/0.31 Max |
S | 0.40MM | 0.32MM |
3.25±0.15MM |
6.15 |
≥600 |
| 4 |
56/0.31 Max |
S | 0.40MM | 0.32MM |
3.55±0.15MM |
4.71 |
≥700 |
| 5 |
65/0.33 Max |
S | 0.40MM | 0.32MM |
4.05±0.15MM |
3.94 |
≥700 |
| 6 |
84/0.31 Max |
S | 0.40MM | 0.32MM |
4.15±0.15MM |
3.14 |
≥700 |
